3-25mm Three Head Glass Drilling Machine For Efficiency / Safety

Name: 325mm Three Head Glass Drilling Machine For Efficiency Safety
Brand: FOSHAN STAR
Price: 6200 USD

Model Number : ST-ZK0222

Neck and arm length : 1250mm

MOQ : 1

Packaging Details : Protective Film

Glass thickness : 3-25mm

Price : 6200-6500USD/SET

Workbench size : 1100mmX620mm

Certification : CB,CE, RoHS, ISO9001

Hole diameter : 4-80mm

Delivery Time : 30 working days

Brand Name : FOSHAN STAR

Name : Glass Drilling Machine

Place of Origin : China

Maximum processing size : 2500*2500mm

Payment Terms : T/T

Workbench height : 920mm

Contact Now

Three Heads Glass Drilling Machine

Machine Overview

This three-head glass drilling machine offers enhanced productivity and precision in drilling operations on various glass types. Designed for efficiency and safety, it features double drill bits for each head and automated operation via foot pedal control.

Key Features

Drills holes from both top and bottom sides of glass simultaneously
Double drill bits for each head for fast and safe operation
Automated bottom and top drilling controlled by foot pedal
Infrared positioning system for precise hole placement
Three heads accommodate different size bits, eliminating frequent bit changes
Pneumatic worktable supports large area plate glass processing
Ideal for mass production with high efficiency and convenience

Technical Specifications

Specification	Value
Neck and Arm Length	1250mm
Hole Diameter Range	4mm - 80mm
Maximum Processing Size	2500mm * 2500mm
Glass Thickness Range	3mm - 25mm
Workbench Size	1100mm * 620mm
Workbench Height	920mm
Machine External Dimensions	2200mm * 2100mm * 1750mm
Motor Power	1.1KW * 6 = 2800
Voltage	380V, 50HZ
Electrical Components	Chint

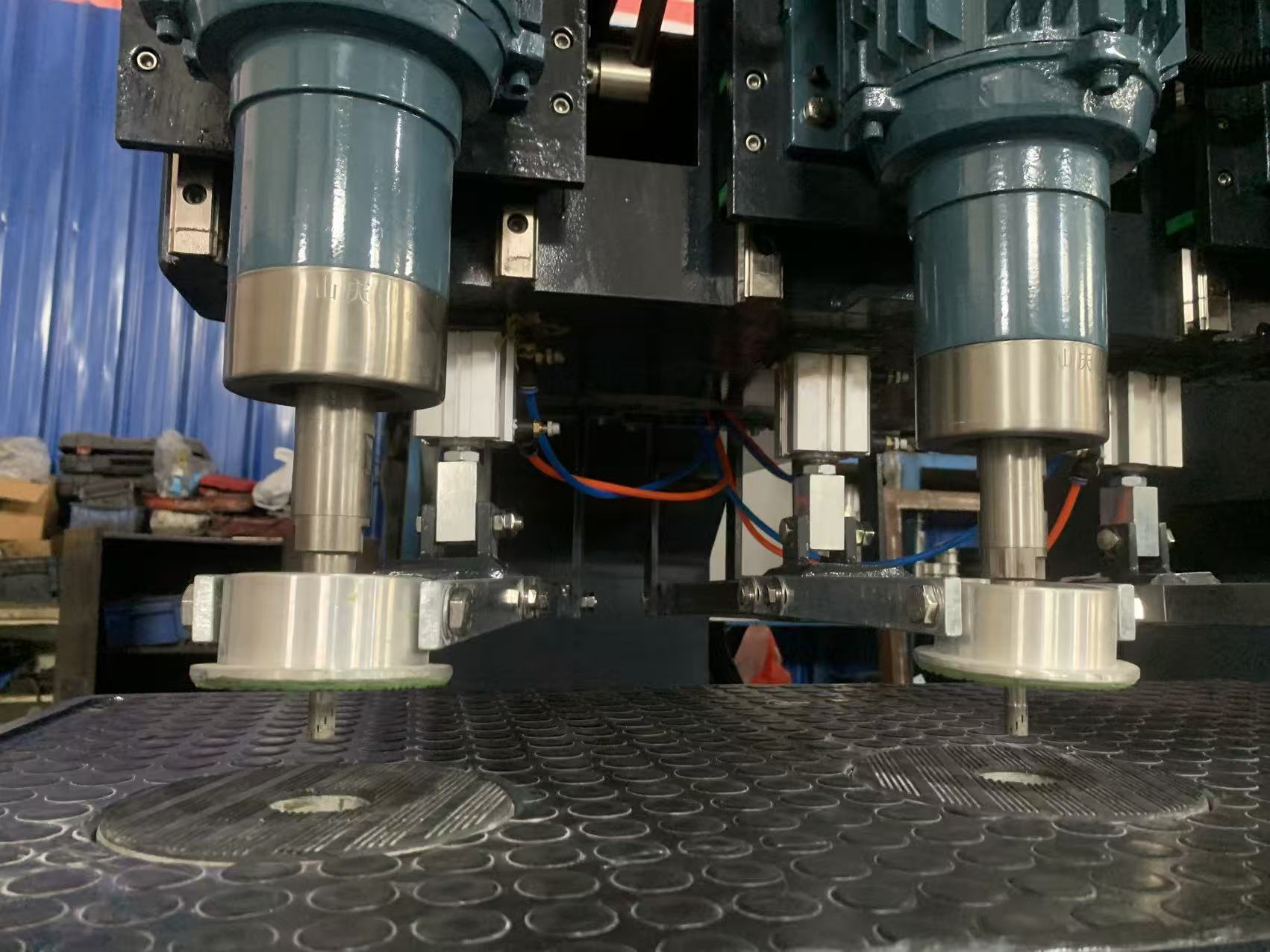

Machine Photos
